TriFlow Series PD blower and vacuum pump technology is shaping the standard for performance and reliability. Each unit is designed for a wide range of commercial and industrial applications. TriFlow is the choice of on-board cleaning system OEMs due to its quiet operation, oil-free air delivery, and flexible installation.

Request a Quote

Aftermarket

The geometry of the three-bladed impeller
Internal feedback port arrangement
Double splash lubrication
Heavy-duty bearings
High-strength timing gear
Piston ring and shaft lip seal
Flexible installation
Integral heat sink on the cabinet
Produced to stringent ISO 9001 quality standards and tested to meet stringent performance requirements
Supported by experienced and trusted local sales and service professionals

MODEL	RPM	VACUUM
		10 "HG		12 "HG		14 "HG		16 "HG
		CFM 127 174 220 327 371	BHP 4.4 5.6 6.8 10.0 11.4	CFM 117 163 210 317 361	BHP 5.2 6.6 8.1 11.7 13.2	CFM 106 153 199 306 350	BHP 6.0 7.6 9.3 13.3 15.1	CFM –– –– –– 294 337	BHP –– –– –– 15.0 17.0
406	1,760 2,190 2,620 3,600 4,000
408	1,760 2,190 2,620 3,600 4,000	190 259 328 485 549	6.3 8.0 9.7 13.9 15.8	176 245 314 471 535	7.5 9.5 11.5 16.4 18.5	161 230 298 455 519	8.7 11.0 13.3 18.9 21.2	–– –– –– 438 502	–– –– –– 21.3 24.0
410	1760 2190 2620 3600 4000	235 326 417 623 708	8.6 10.9 13.4 20.0 23.0	214 305 396 602 687	10.2 12.8 15.7 23.2 26.6	191 282 373 579 664	11.8 14.8 18.1 26.5 30.3	165 256 341 553 638	13.4 16.8 20.5 29.7 33.9
Performance based on inlet air at standard temperature of 68˚ F, an ambient pressure of 14.7 psia and 36% relative humidity. For performance at non-standard conditions, contact your authorized Gardner Denver representative.

B-E-01 Gardner Denver Blower Product Overview

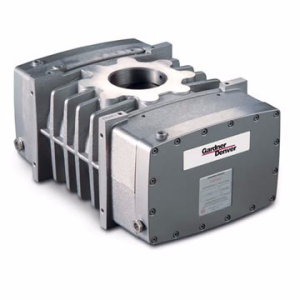

Triflow three-blade roots blower
