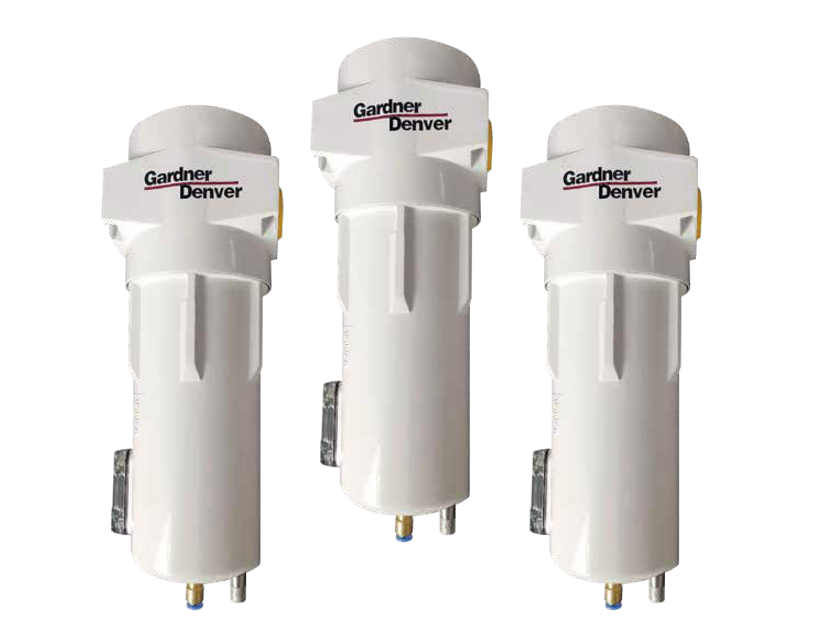

The filter element design of stainless steel inner and outer support mesh has strong filtration capacity
The advanced filter element design concept makes the filter structure more compact, smaller in size, easy to install, and the housing can be connected in series to reduce installation and maintenance space
Automatic drain as standard (built-in drain for GDF540V* and below, external drain for GDF690V* and above)
It has four filtration precisions available: G, D, H, A
G-main filter, filtering water mist and oil mist above 1μm, water removal efficiency is higher than 95%
D-Dust filter, filter dust particles above 1μm
H-degreasing filter, filtering out particles above 0.01μm, water mist and oil mist, and residual oil 0.01ppm@7barg
A-Precision oil removal filter, filter out oil mist above 0.001μm, and the amount of residual oil does not exceed 0.001mg/m3
机型 | 流量100psig | 空气接口管径 | 外形尺寸(mm) | 重量 | 排污接口 | 外壳 | |
m³/min | (进口/出口) | 高 | 直径 | kg | |||
GDF42V* | 0.7 | 0.75" BSPT | 225 | 89 | 0.9 | φ8 | 铝合金外壳 |
GDF72V* | 1.2 | 0.75" BSPT | 225 | 89 | 0.9 | φ8 | 铝合金外壳 |
GDF108V* | 1.8 | 0.75" BSPT | 258 | 89 | 1.0 | φ8 | 铝合金外壳 |
GDF216V* | 3.6 | 1" BSPT | 333 | 120 | 2.4 | φ8 | 铝合金外壳 |
GDF294V* | 4.9 | 1.5" BSPT | 432 | 120 | 2.9 | φ8 | 铝合金外壳 |
GDF342V* | 5.7 | 1.5" BSPT | 432 | 120 | 2.9 | φ8 | 铝合金外壳 |
GDF390V* | 6.5 | 1.5" BSPT | 432 | 120 | 3.0 | φ8 | 铝合金外壳 |
GDF444V* | 7.4 | 1.5" BSPT | 432 | 120 | 3.0 | φ8 | 铝合金外壳 |
GDF540V* | 9 | 1.5" BSPT | 432 | 120 | 3.0 | φ8 | 铝合金外壳 |
GDF690V* | 11.5 | 2" BSPT | 521 | 162 | 5.1 | R1/2 | 铝合金外壳 |
GDF810V* | 13.5 | 2" BSPT | 521 | 162 | 5.1 | R1/2 | 铝合金外壳 |
GDF990V* | 16.5 | 2.5" BSPT | 845 | 162 | 6.5 | R1/2 | 铝合金外壳 |
GDF1050V* | 17.5 | 2.5" BSPT | 845 | 162 | 6.6 | R1/2 | 铝合金外壳 |
GDF1170V* | 19.5 | 2.5" BSPT | 845 | 162 | 6.6 | R1/2 | 铝合金外壳 |
GDF1380V* | 23 | 3" BSPT | 601 | 200 | 8.7 | R1/2 | 铝合金外壳 |
GDF1590V* | 26.5 | 3" BSPT | 601 | 200 | 8.7 | R1/2 | 铝合金外壳 |
GDF1740V* | 29 | 3" BSPT | 862 | 200 | 11 | R1/2 | 铝合金外壳 |
GDF2100V* | 35 | 3" BSPT | 862 | 200 | 11 | R1/2 | 铝合金外壳 |
GDF2340V* | 39 | 3" BSPT | 862 | 200 | 11 | R1/2 | 碳钢外壳 |
GDF2700V* | 45 | 4"FLG | 900 | 500 | 66 | Rc1/2 | 碳钢外壳 |
GDF3090V* | 51.5 | 5"FLG | 930 | 500 | 98 | Rc1/2 | 碳钢外壳 |
GDF3480V* | 58 | 5"FLG | 930 | 500 | 103 | Rc1/2 | 碳钢外壳 |
GDF4080V* | 68 | 5"FLG | 950 | 540 | 118 | Rc1/2 | 碳钢外壳 |
GDF4200V* | 70 | 5"FLG | 950 | 540 | 120 | Rc1/2 | 碳钢外壳 |
GDF4560V* | 76 | 6"FLG | 990 | 560 | 124 | Rc1/2 | 碳钢外壳 |
GDF4800V* | 80 | 6"FLG | 990 | 560 | 127 | Rc1/2 | 碳钢外壳 |
GDF5520V* | 92 | 6"FLG | 1040 | 640 | 132 | Rc1/2 | 碳钢外壳 |
GDF5940V* | 99 | 6"FLG | 1040 | 640 | 136 | Rc1/2 | 碳钢外壳 |
GDF7680V* | 128 | 6"FLG | 1040 | 640 | 148 | Rc1/2 | 碳钢外壳 |
GDF8700V* | 145 | 8"FLG | 1140 | 700 | 190 | Rc1/2 | |
